Electric / Hydraulic Graut Plant
Requires 3 Phase power, several voltage option available.
Applications
Civil Engineering – soil nails, tiebacks, earth anchors, high pressure rock grouting
Structural – building restoration, foundation stabilization, foundation raising, soil compaction grouting
Construction– post tensioning, slab undersealing , slab jacking and slab raising
Marine– underwater foundations, piers, breakers, shoreline foundations
Mining– high pressure rock grouting, tunnel lining, contact grouting, waterproofing, cable and rock bolts
Utilities– encasements, waterproofing, dam foundations
Geotechnical– deep well casing, monitor wells, well sealing and abandonment
M-100 High Pressure Grout Pump |
|
Pumping capacity |
85 LPM (22 GPM) |
Maximum output pressure |
80 BAR (1150 PSI) |
Main motor power |
11 KW (15 HP) 400V 50Hz – 480V 60Hz |
Mixing motor |
Hydraulie |
Mixing capacity |
200 Liter (53 Gallon) |
Holding tank |
250 Liter (66 Gallon) |
Dimensions |
L:2.22 (87.5’’) W:1.70 (67’’) H:1.80 (71’’) |
Weight |
2000 kg (4.400 lbs) |
Outflow hose diameter |
1 ¼’’ - 1’’ |
Water liter meter |
Standard |
Hydraulic cooling |
Standard |

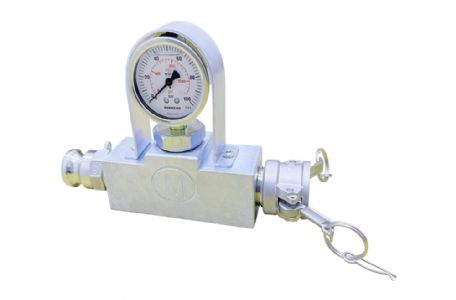

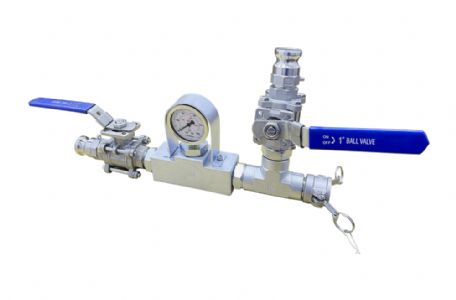

Cement pressure gauge |
Standard |
Flow meter |
Optional |
